Coupling: Cruisemaster D035 Coupling
Chassis Finish: Hot dipped galvanised chassis
Axle: Dual axle (18 & 18’8 Single axles)
A-Frame: Extended A-frame
Flooring: 50mm Honeycomb floor 3mm vinyl flooring
Jockey Wheel: 10" Adjustable jockey wheel
Step: Electric Double step
Drop Legs: Drop down stabiliser legs
Tyres: 15" Black Alloy wheels 235/75/R15 AT tyres (Single Axles 16" Alloy Wheels 265/70R16 MT)
Suspension: 4T Terra X Coil & Shock Independent Suspension with 12" Brakes
Deflector: Stone deflector
Brace: Jack and wheel brace
Battery Box: Fully sealed under floor battery compartment
Jacking Points: Suspension arm jacking points & chassis jacking points
Fresh Water: 2×120L fresh water tank
Grey Water: 1x 80L grey water tank
Water Tank Protection: Aluminium checker plate armour on water tanks
Gauge: Digital Fresh Water & Grey Tank Gauges
Water Pump: 12V Water pump
Water Port: External box with integrated gravity water filling port, mains water filling port, outdoor shower, and bypass isolation valve
A-Frame - Tap: Water tap on A-frame
Gas Bayonet: 2 x External gas bayonet outlets
Gas Bottles: 2 x 9kg gas bottles
Hot Water: Continuous hot water service
Tapware: Matte black tapware
Shower: One piece fully sealed fibreglass shower
Heater: Diesel heater
Shower Head: Black shower rose & tapware
Fittings: Watermark pipes and fittings
Air Conditioner: 3400W reverse cycle Dometic FreshJet 7 Pro air conditioner

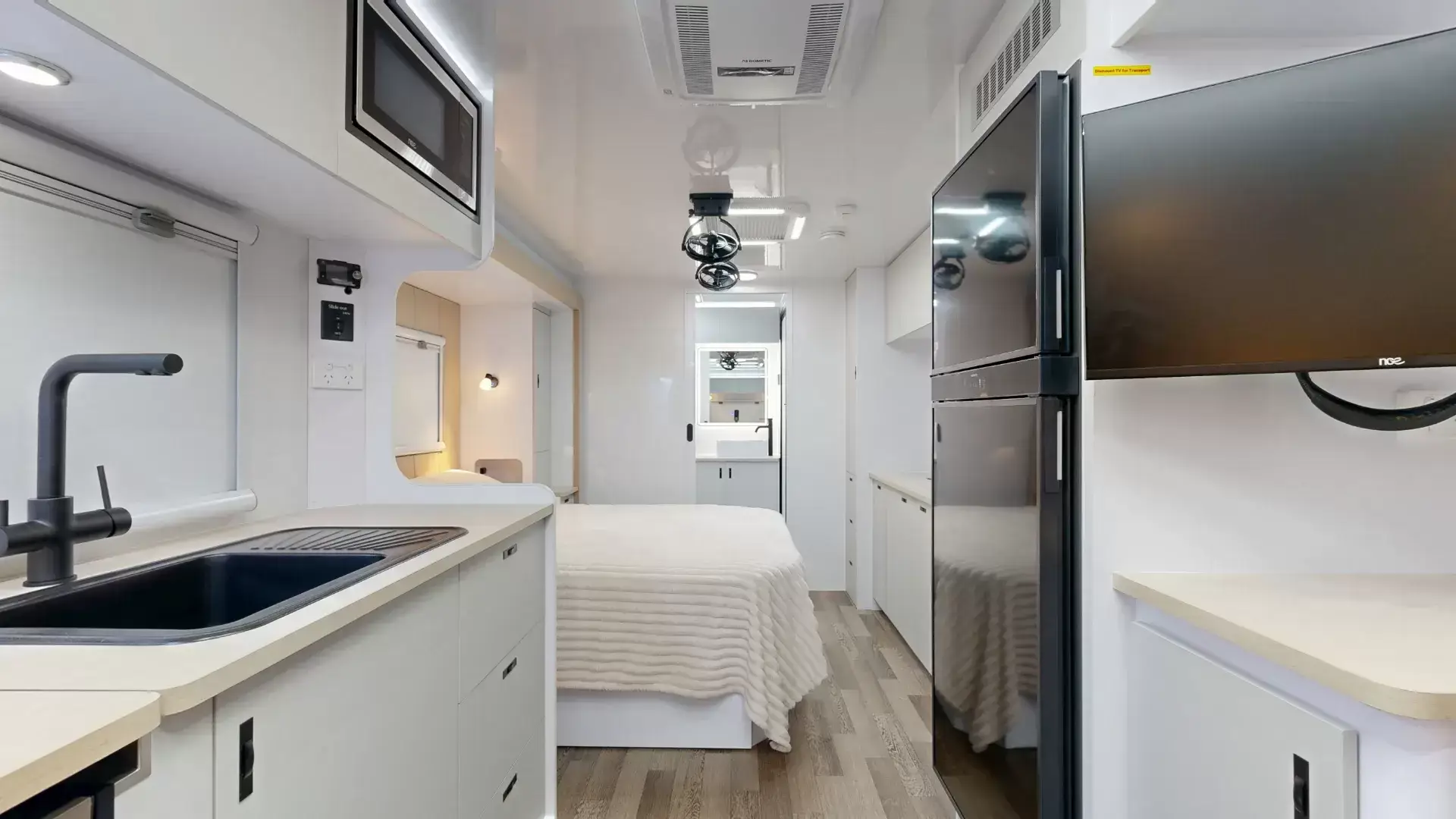

Refrigerator: 224L Thetford T22082 compressor refrigerator

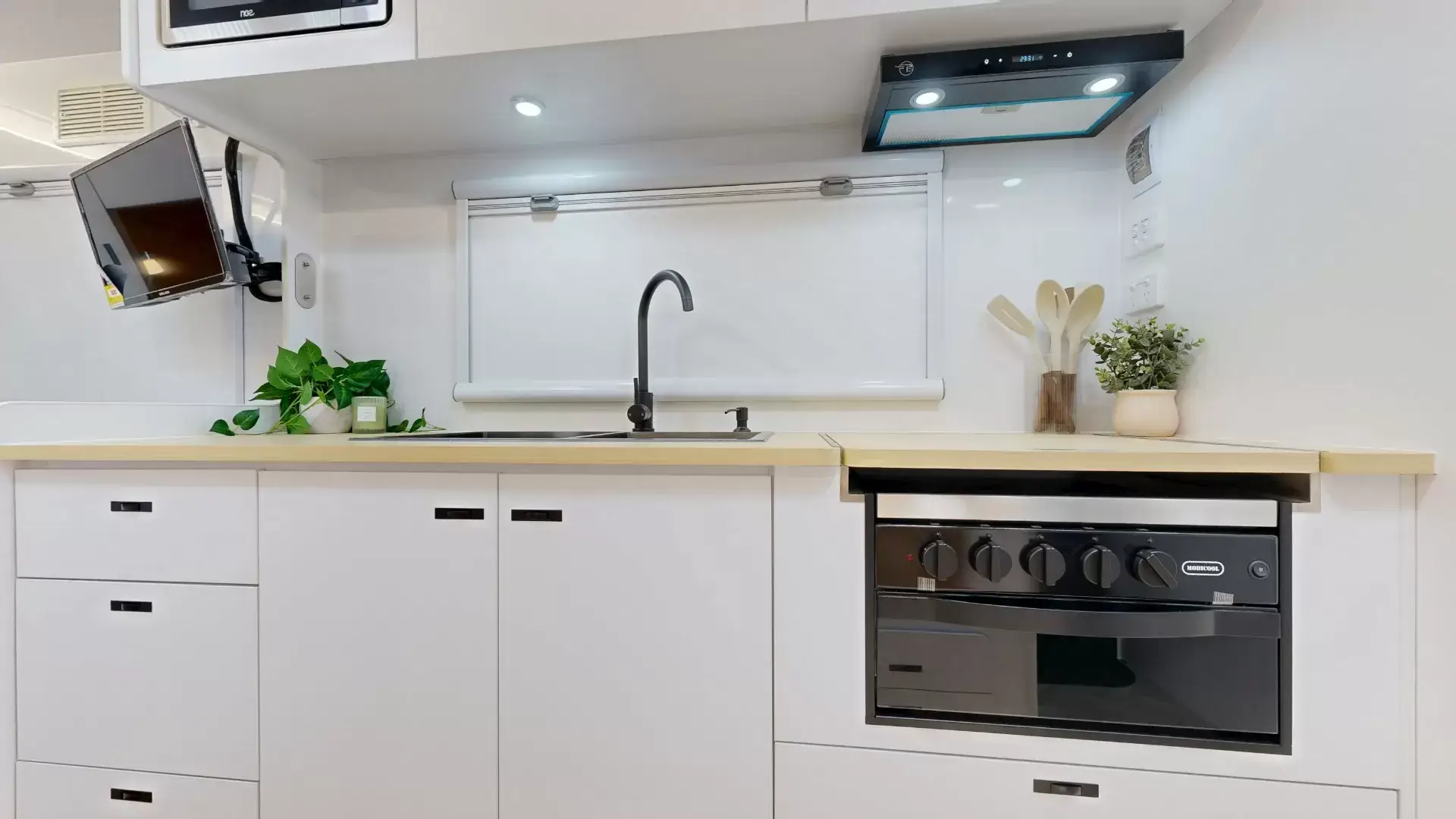

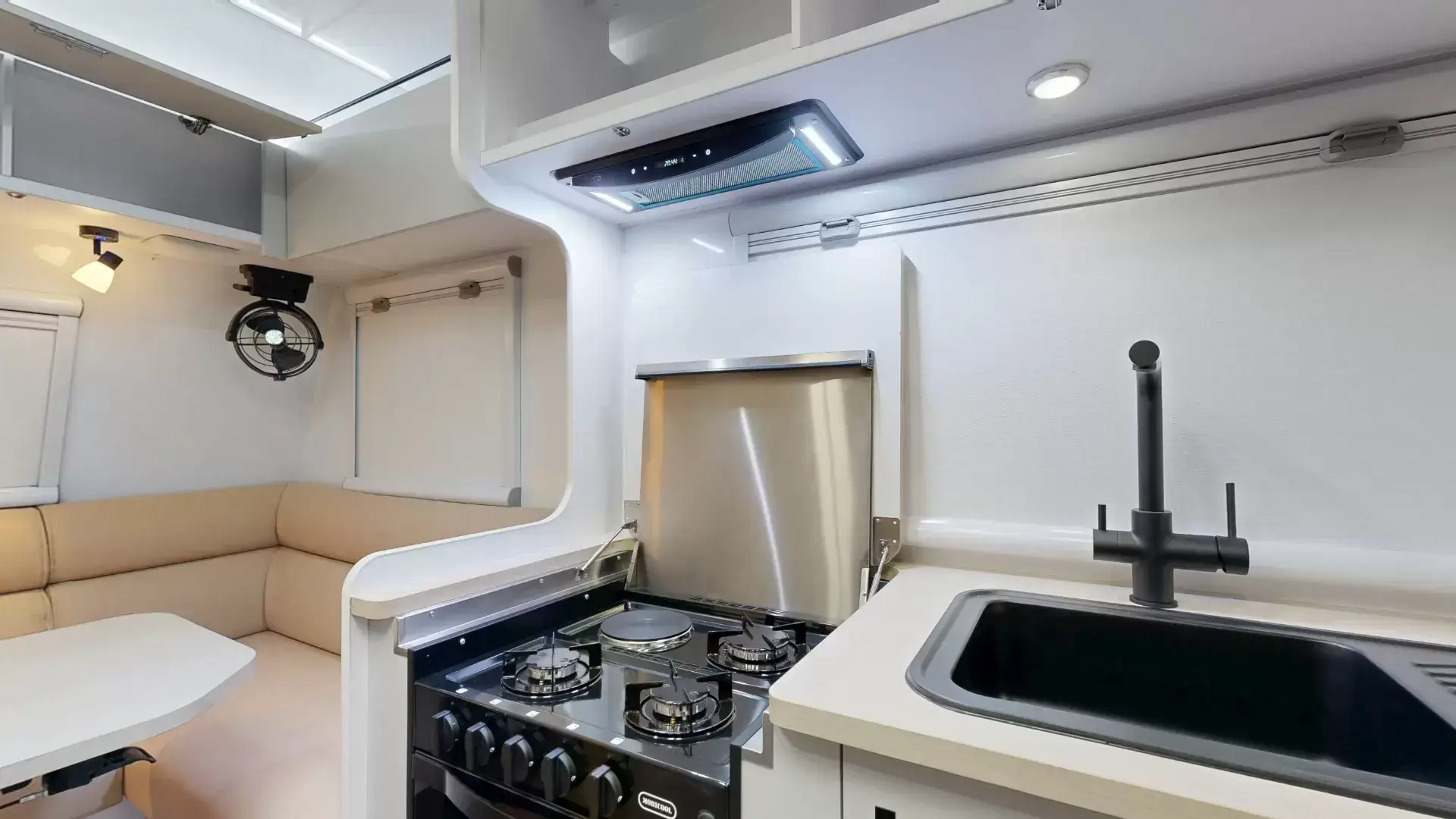

Cooktop: Dometic Mobicool MC102 - 4 x burner cooktop & minigrill
Dust Reduction: Dometic DRS2 Dust Reduction System
Rangehood: 12V Rangehood

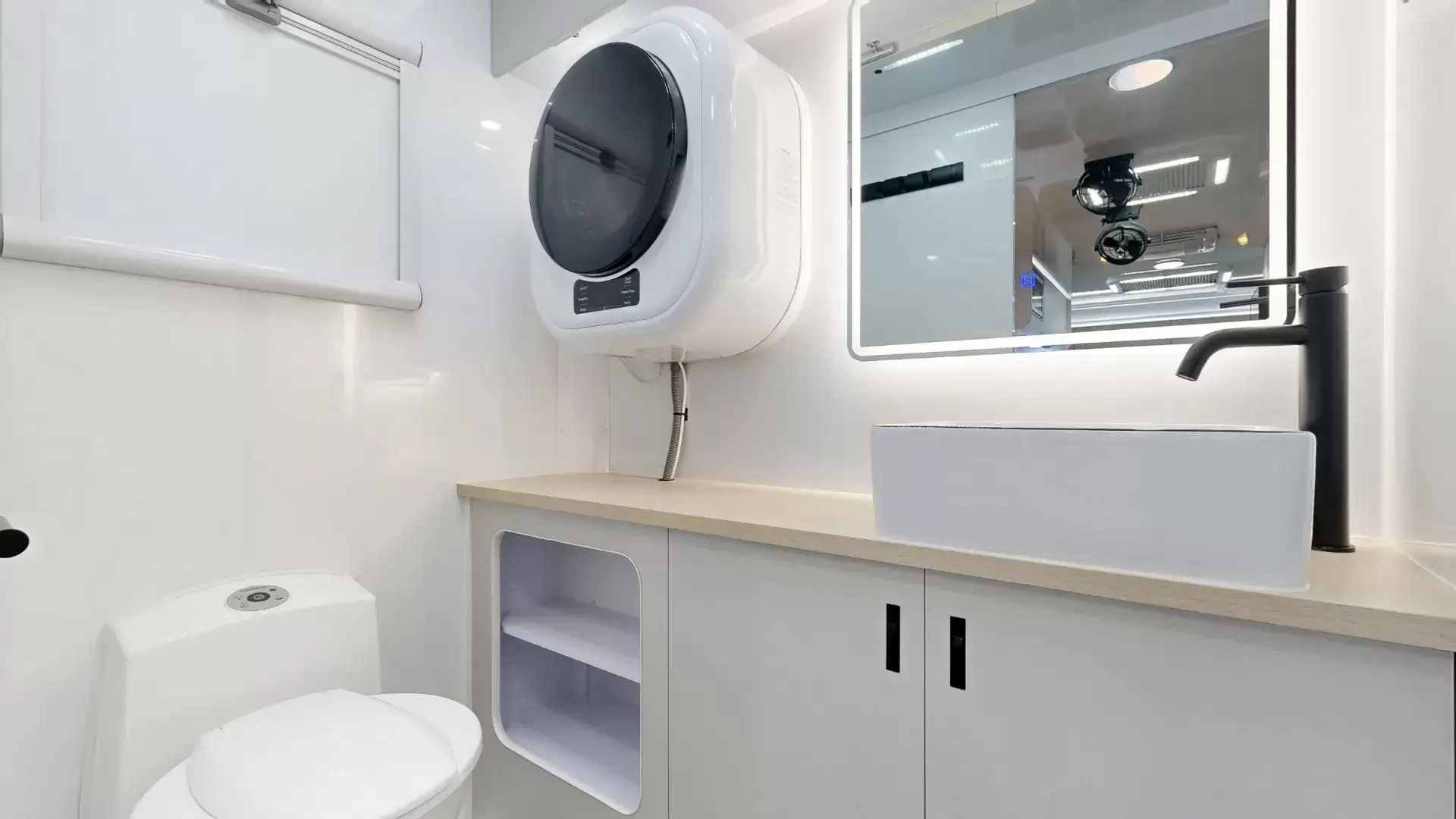

Mirror: Ensuite vanity mirror with built-in LED light
Microwave: NCE 23L microwave oven

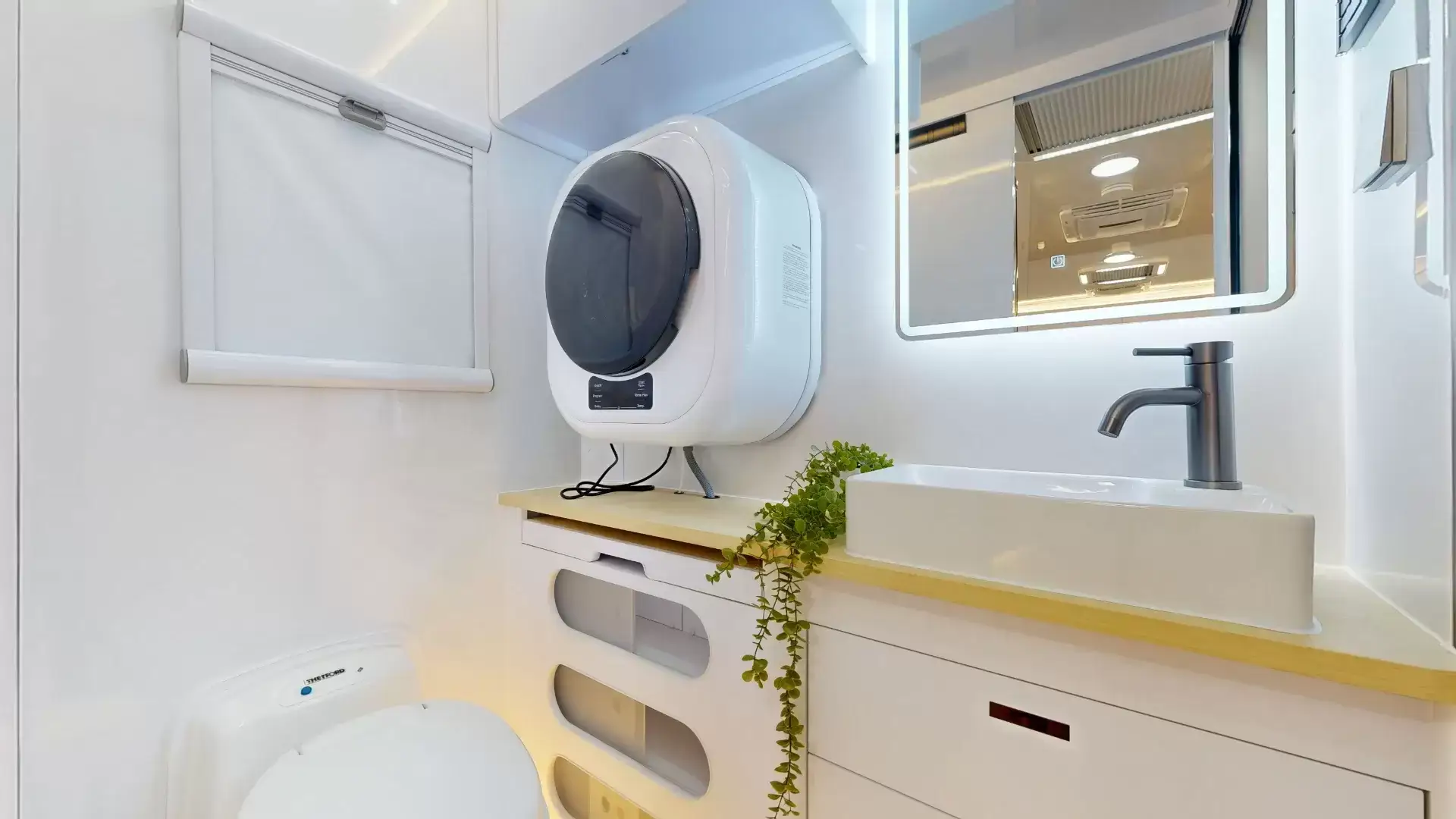

Washing Machine: 3.2kg top load washing machine (front load in single axles & Club 22 models)

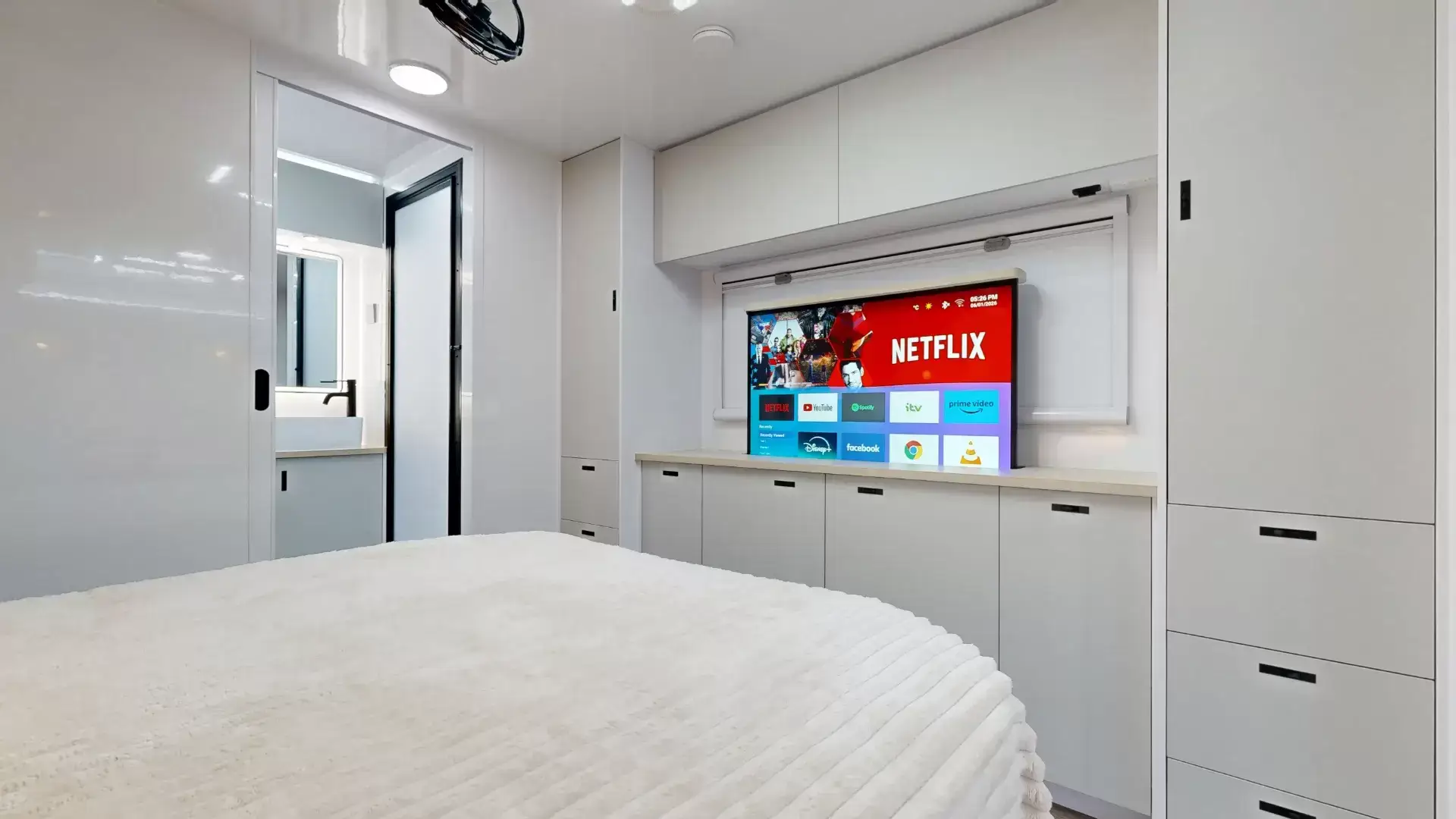

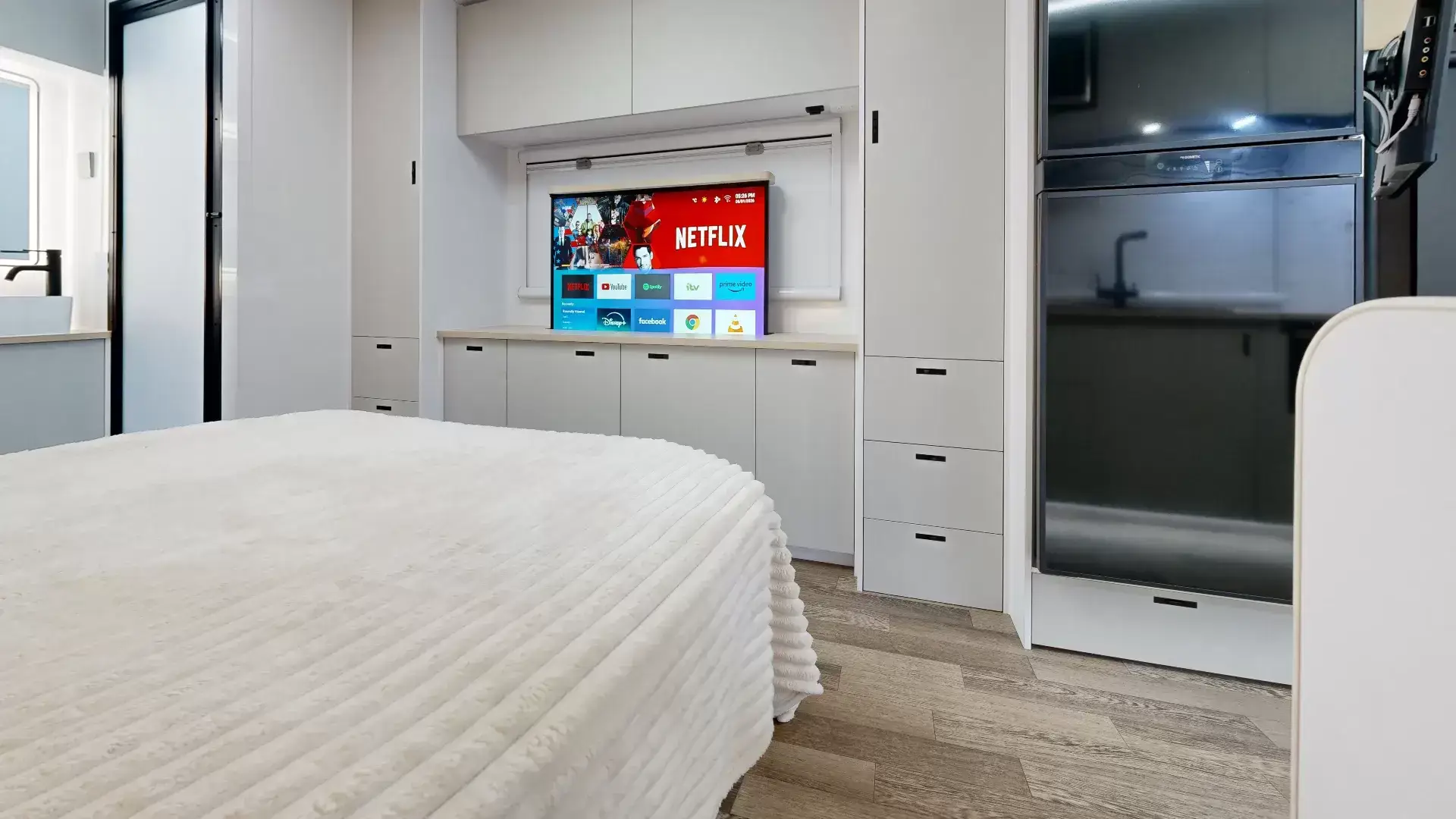

TV: 24" High Definition Smart TV
Smart TV: 28" HD Smart TV (Club 22' model only)
Speakers: 2 x Fusion internal & 2 x Fusion external speakers
Management System: Wegic RV Energy management system,
39 load channels, 27 sensors and full
can-bus communications.
Battery Management System: Arizon full battery management system with fully integrated 3000W inverter, 200A AC Charging, 100A combined DCDC & MPPT Solar input With can-bus communications
Battery: 2 × 230Ah Lithium Batteries
Solar: 750W Solar Panels
Drawbar: 50amp Anderson plug to drawbar
Portable Solar: 50amp Anderson Plug for portable solar input
Anderson Plug: 50A Anderson plug 12V output for outdoor refrigerator
Reversing Camera: Wifi reverse camera with 270 degree viewing and in car display screen
Light: Front & rear work lights
Lighting: 5 X LED external lights
Hatch Lights: 2 x LED hatch lights (where applicable)
Handrail: Black LED light handrail
Antenna: Winegard 360 TV antenna
Wifi: Pre-wired for Starlink
Lights: LED ceiling lights
Downlight: LED downlights under kitchen cabinets
Reading Light: LED reading lights with USB ports
Outlets: USB & USB-C outlets
Sockets: 240V power sockets throughout van
Strip Light: LED strip lighting above overhead cabinets

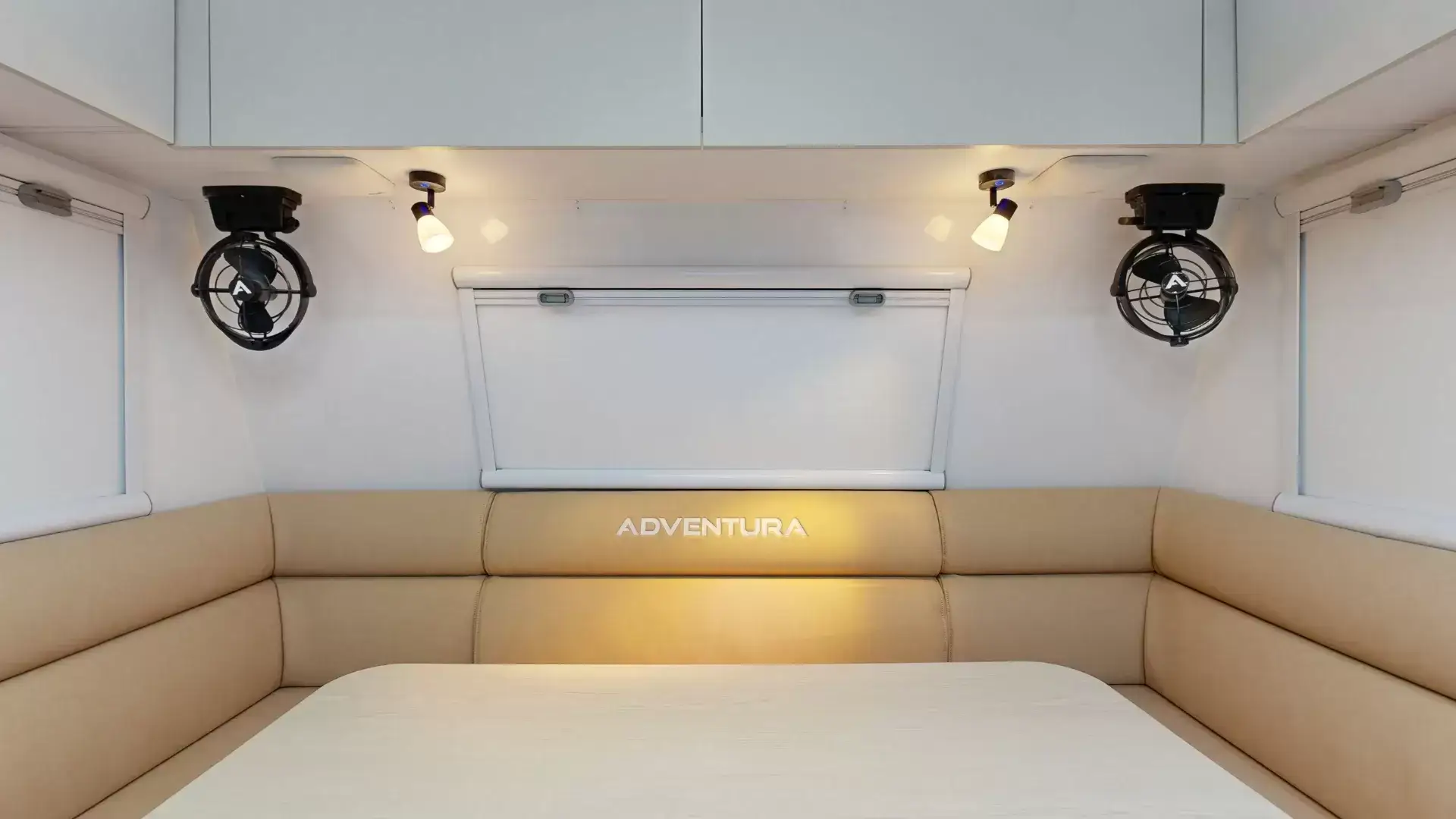

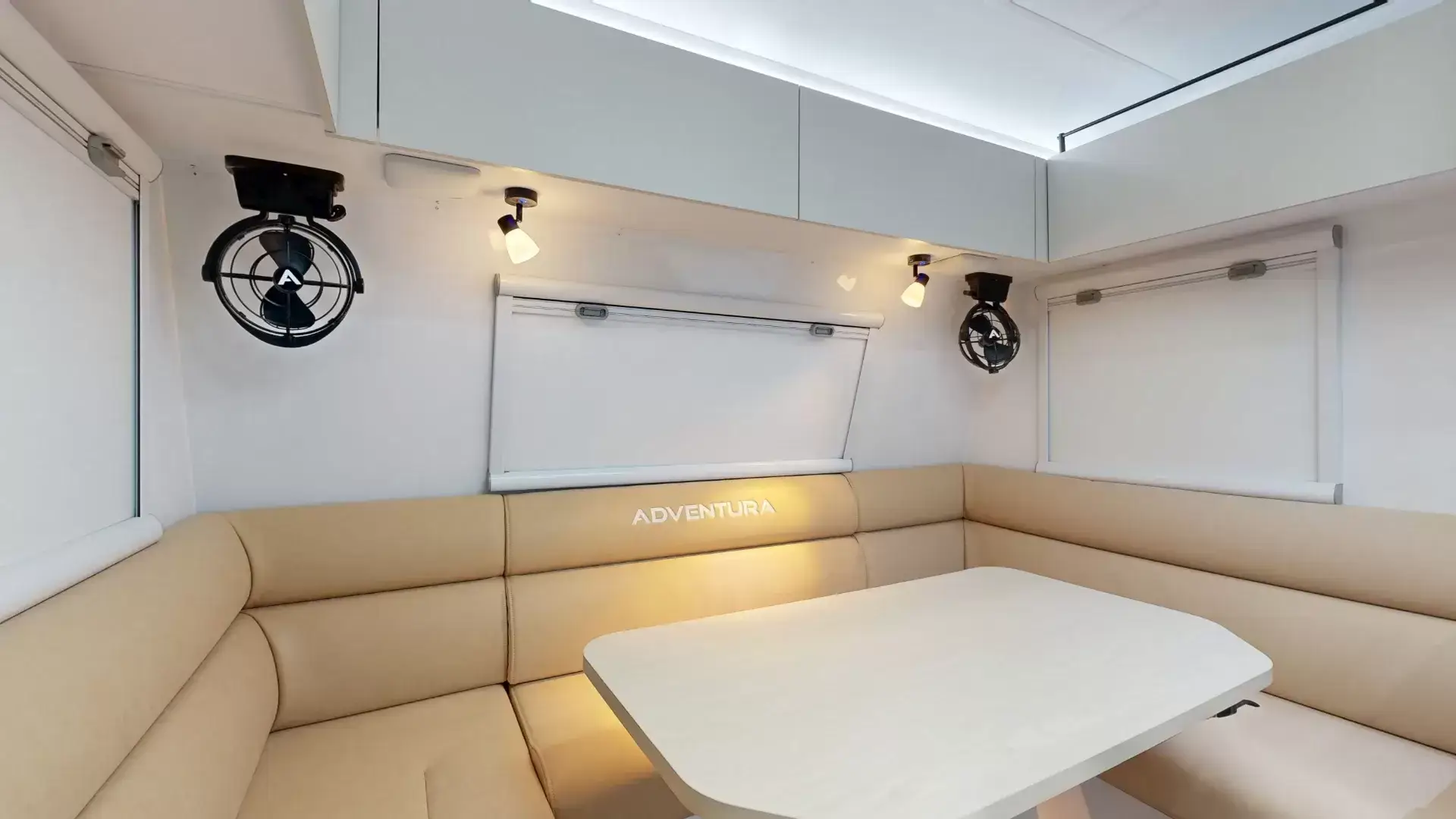

Fans: Up to 4 x 12V fans depending on layout (family layouts have extra)
Alarm: Smoke detector & gas alarm

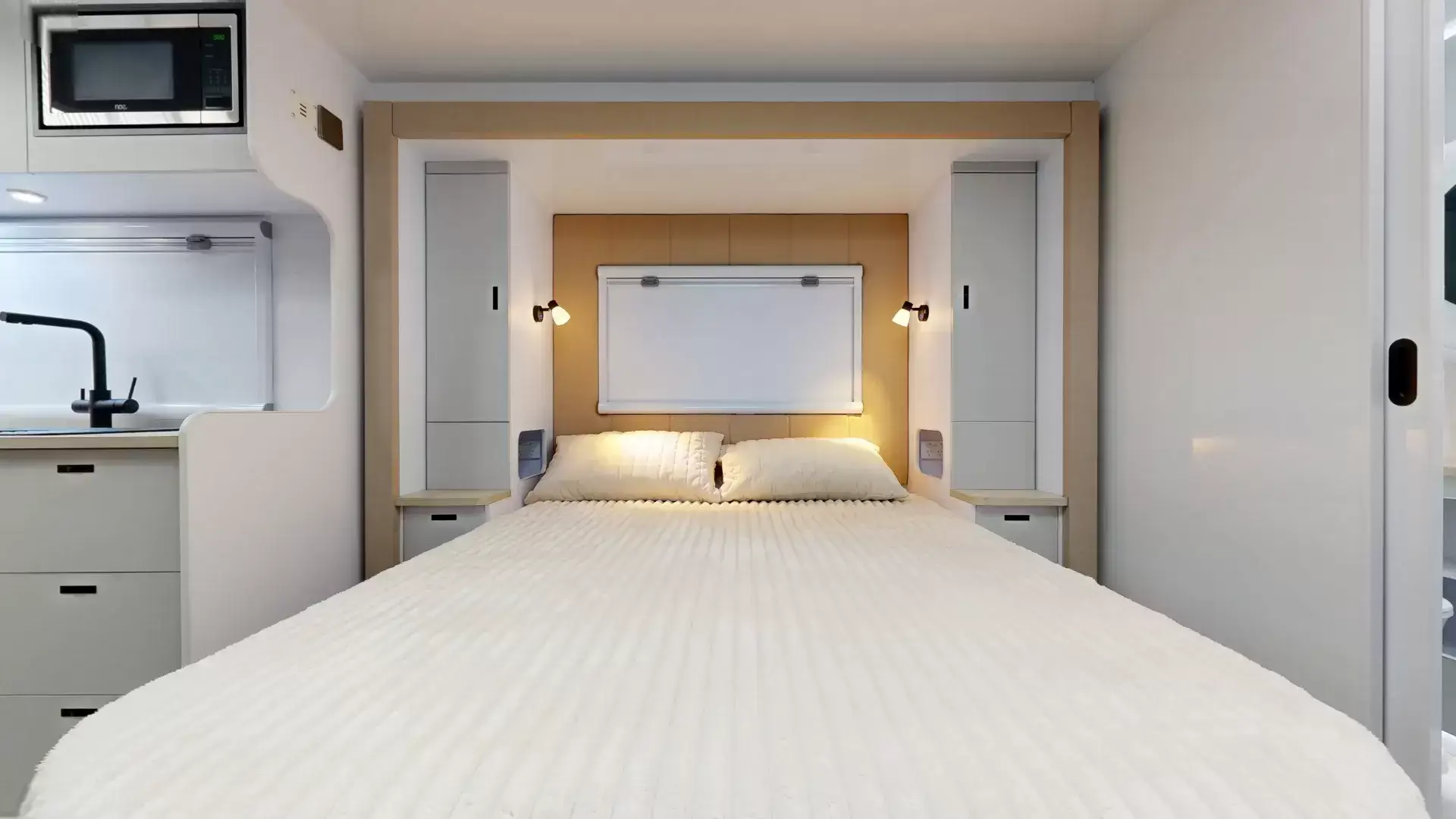

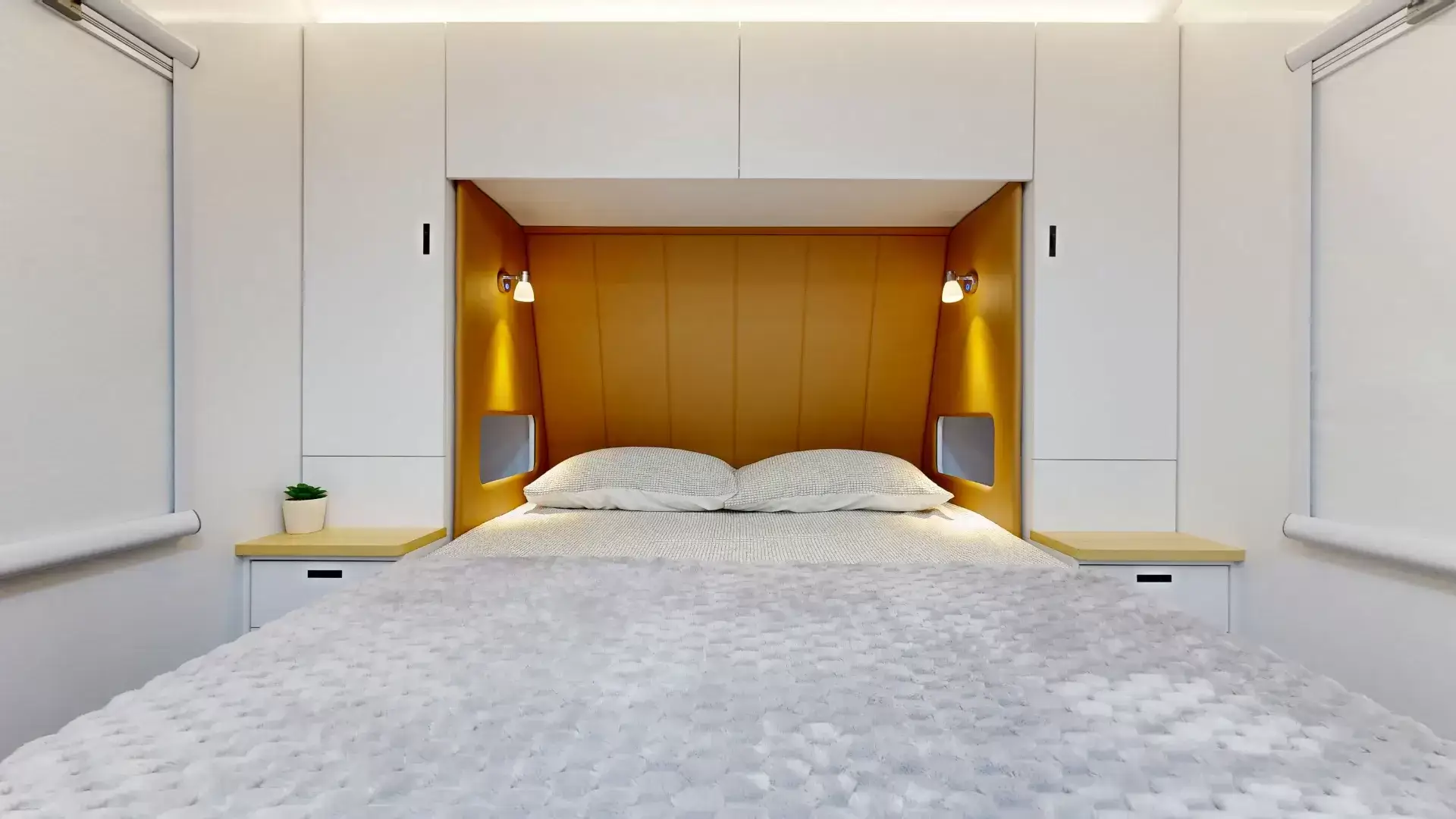

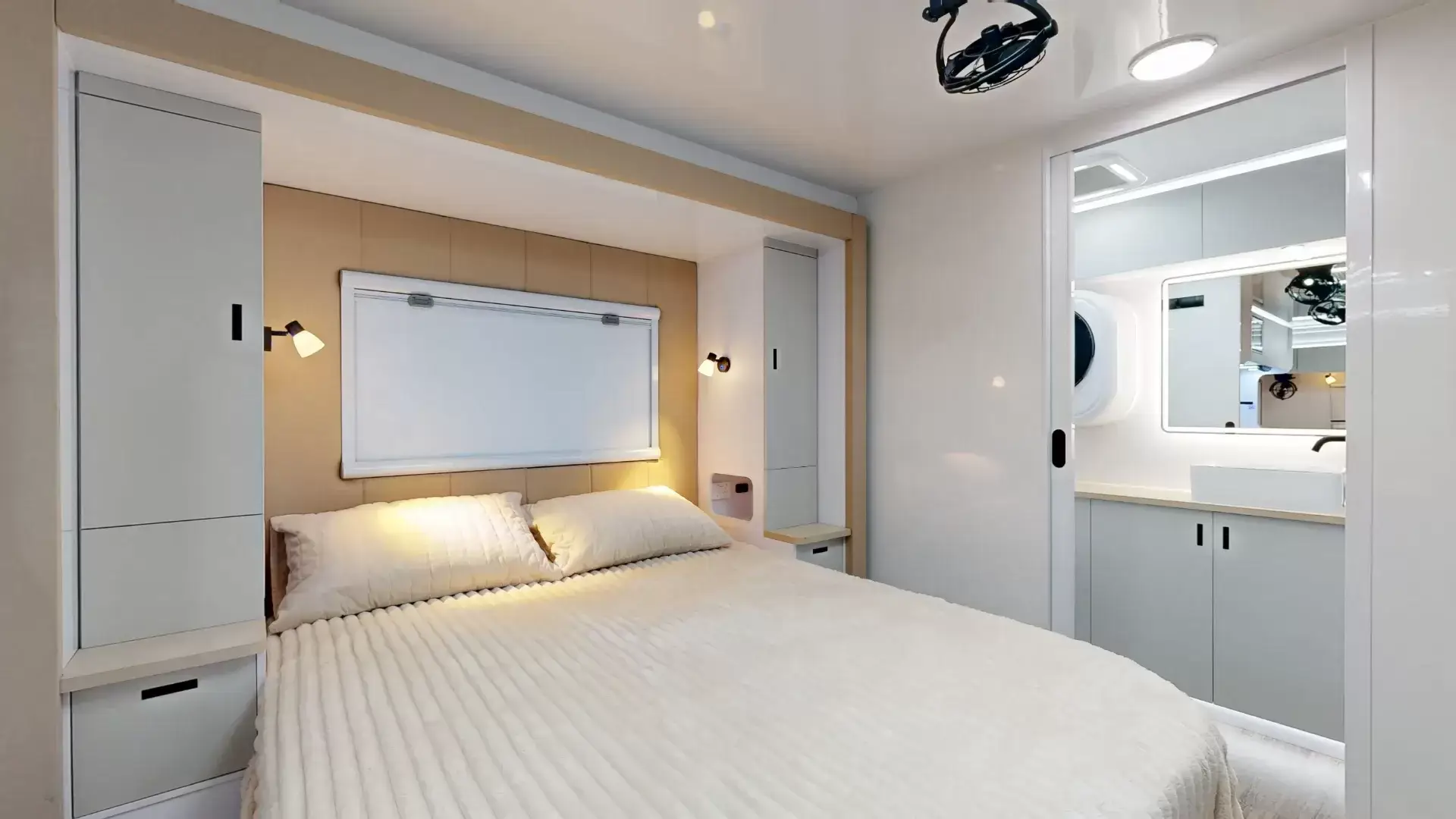

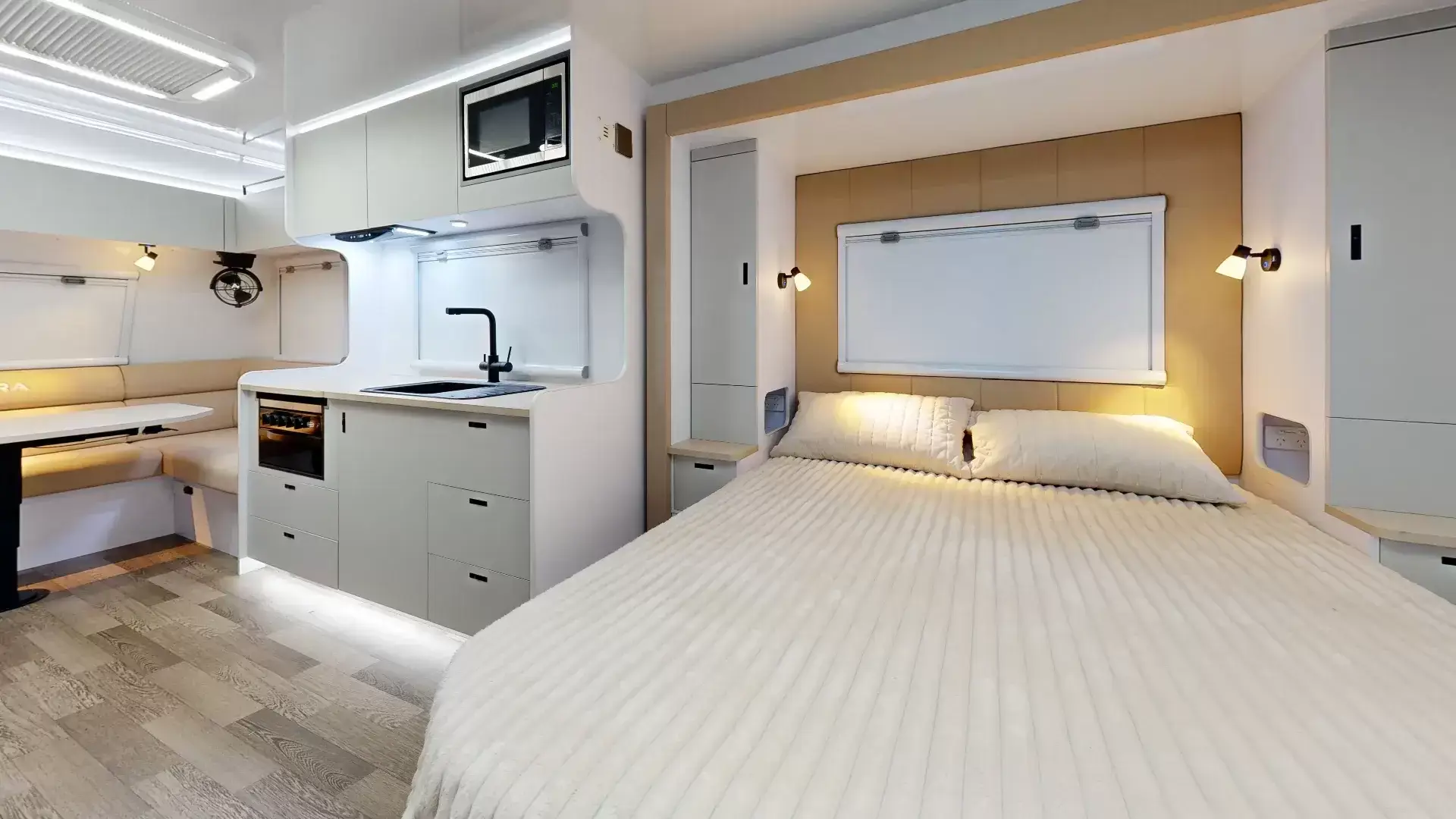

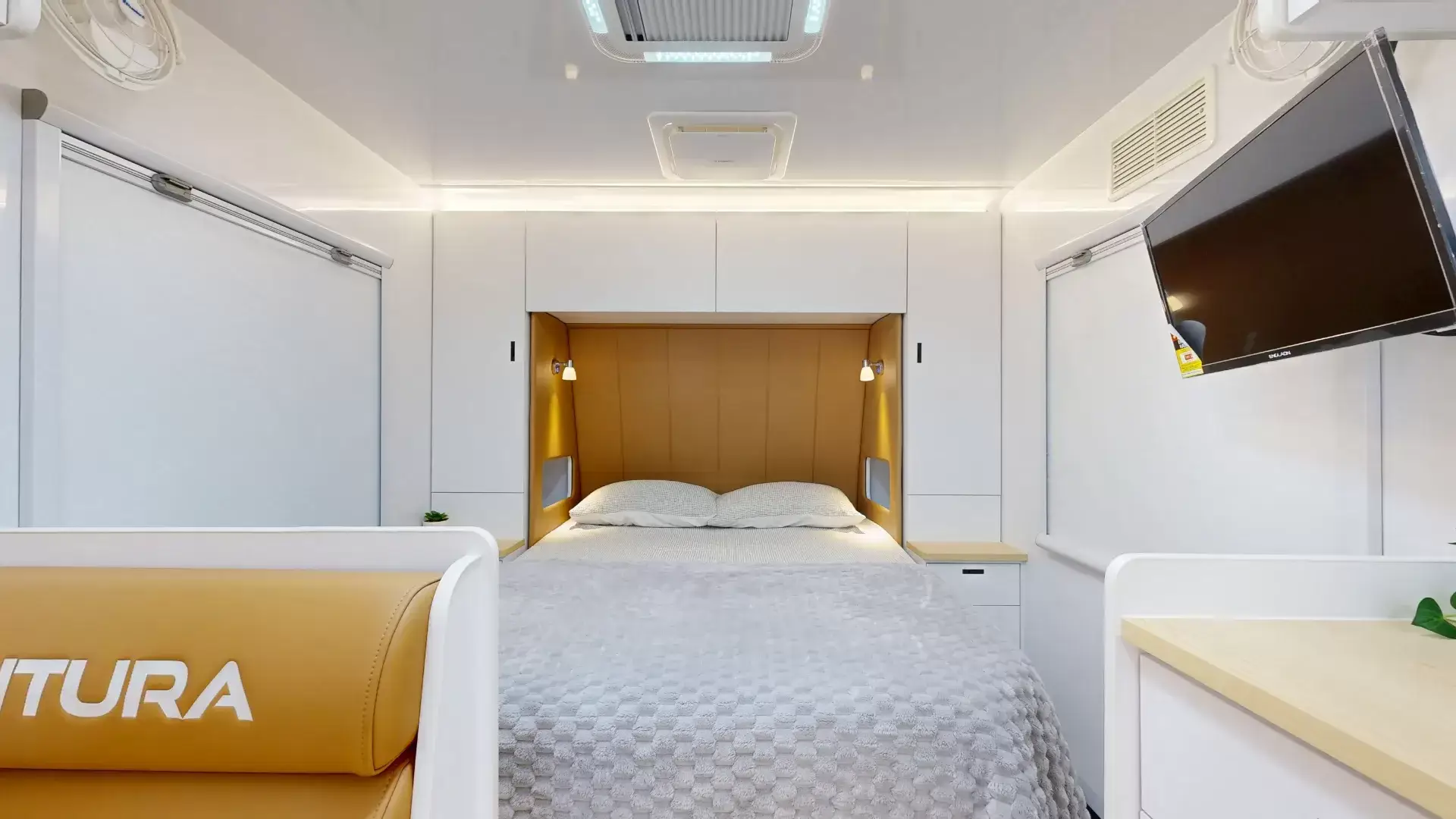

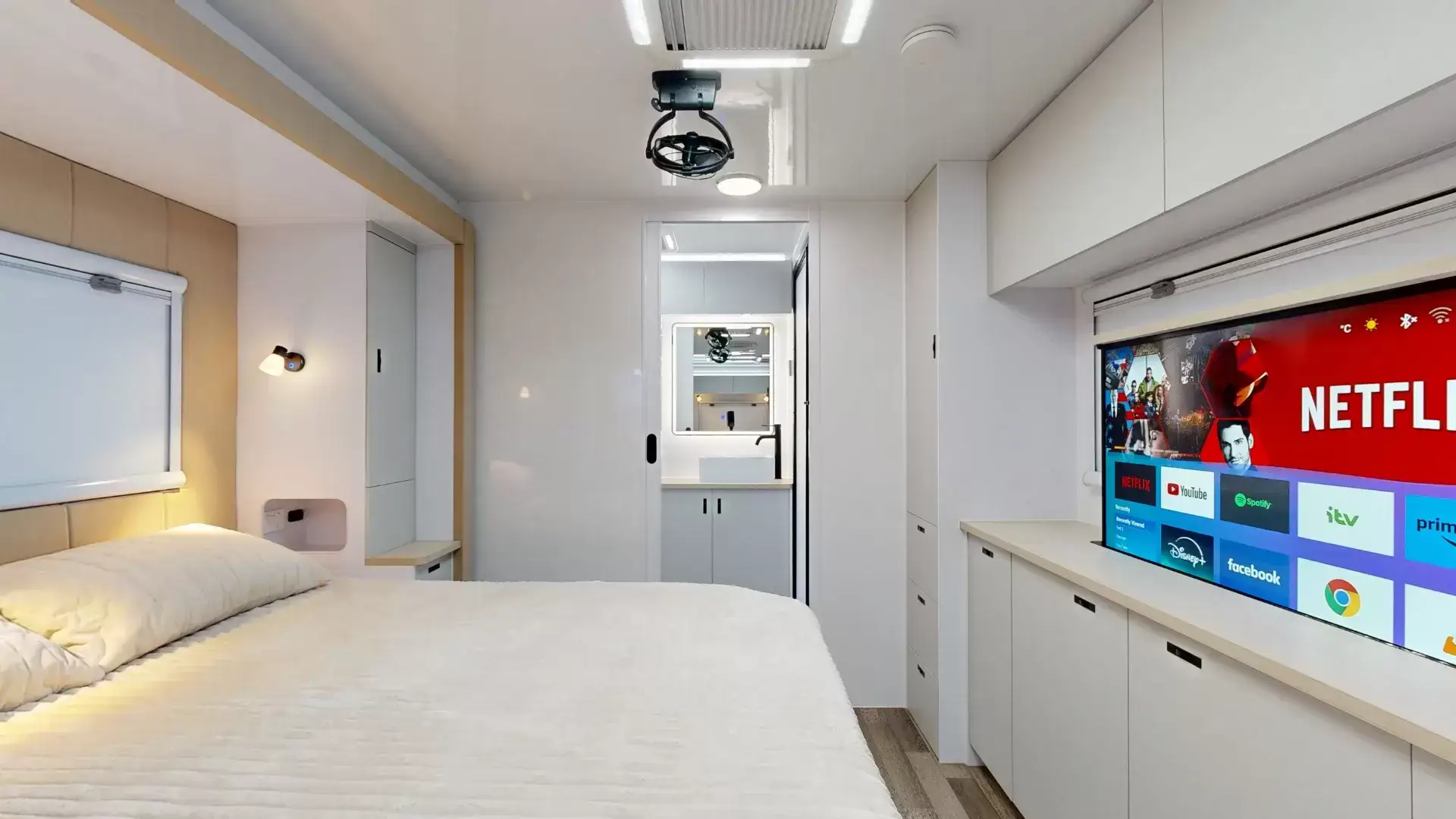

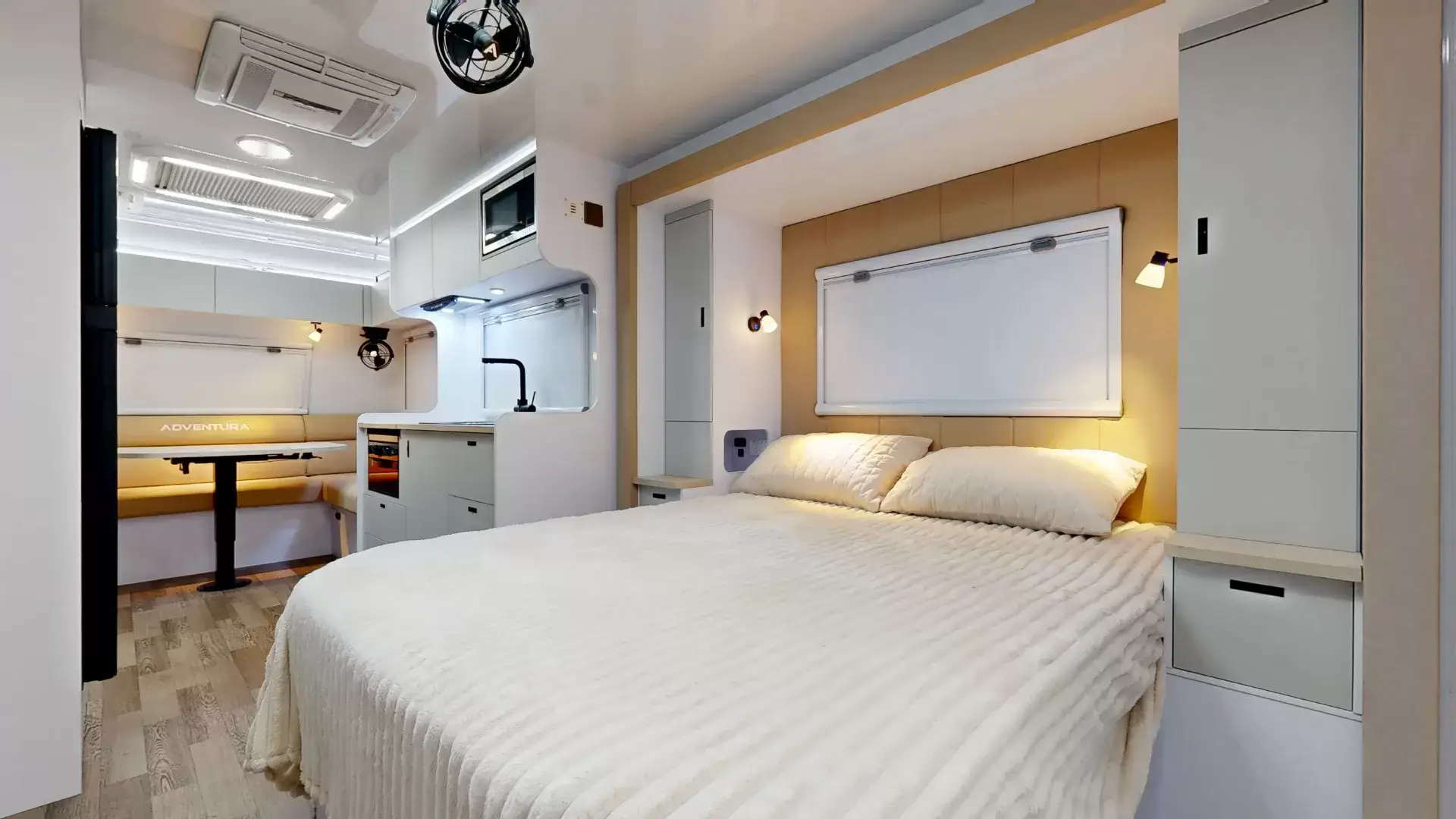

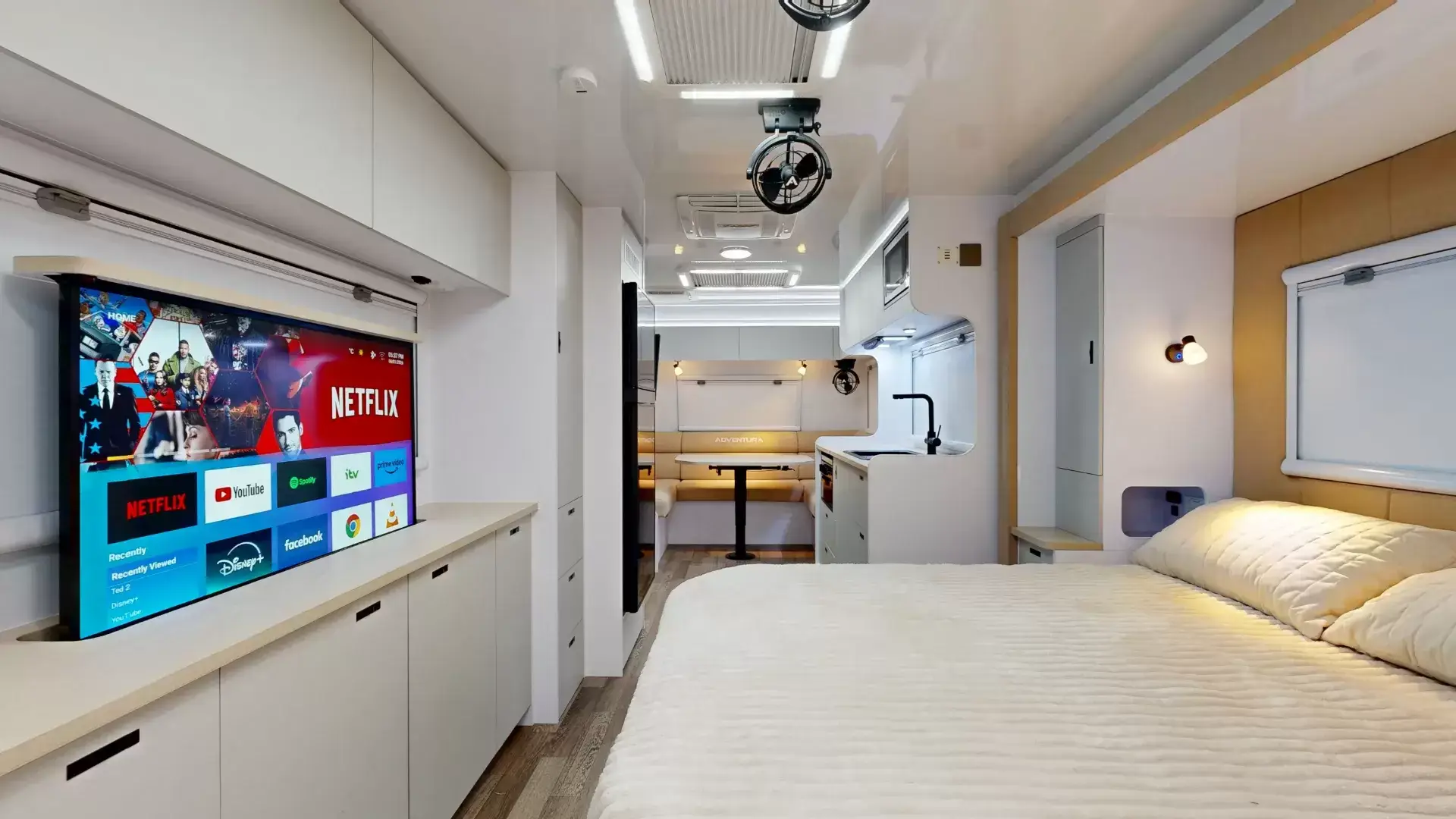

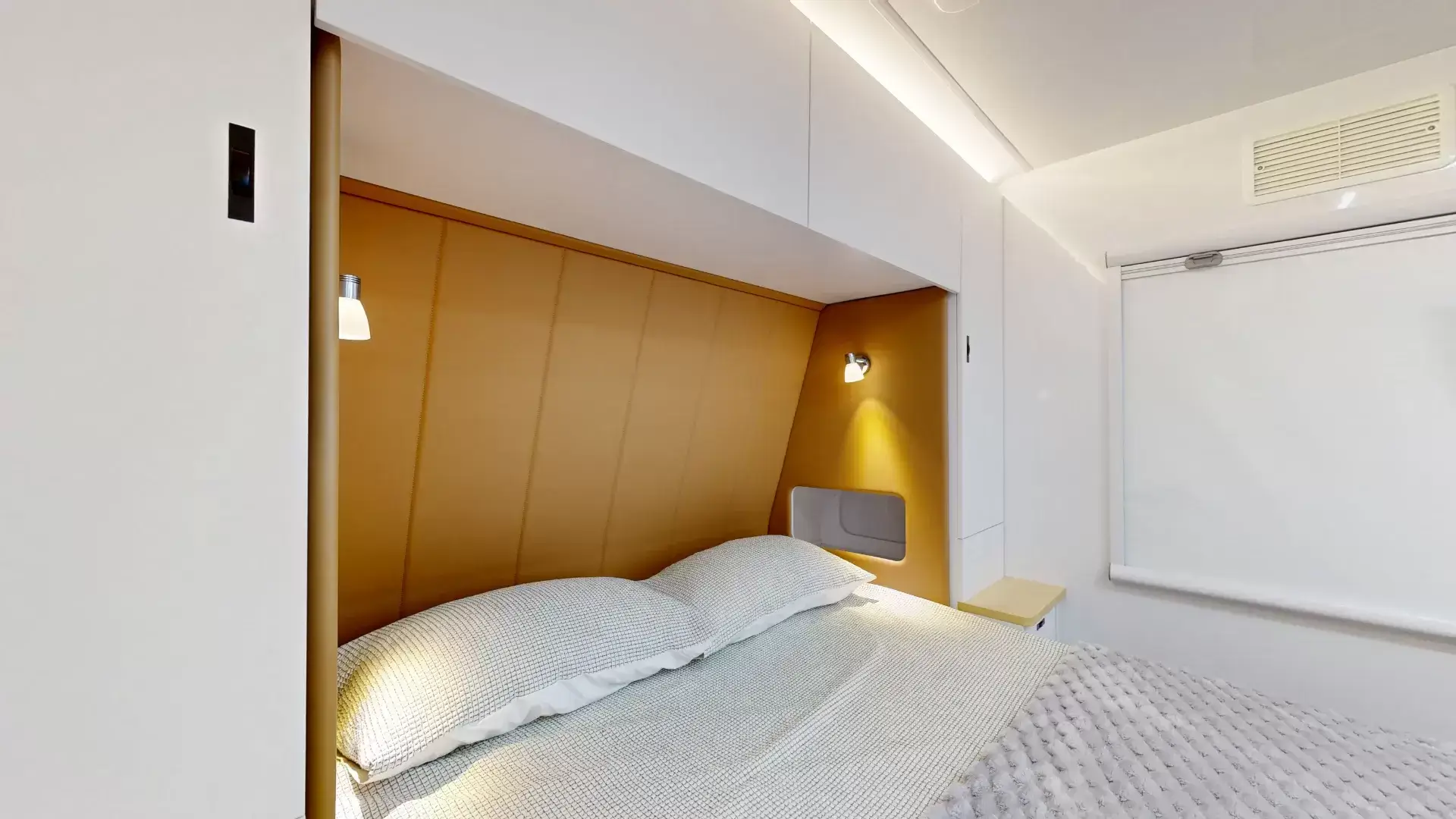

Main Bed: Queen sized island bed with lift up base
Upholstery: Premium Upholstery on Bed Head Board & Sofa/Lounge
Cabinets: Master bed overhead cabinets and side hanging cabinets
Handrail: Black interior handrail at entrance
Fire Extinguisher: 1 x fire extinguishers ( 2 x in Club 22' Model)
Drawers: Soft closing cabinet drawers
Ensuite: Ensuite cabinets
Panels: Light weight benchtops, door and cabinetry panels

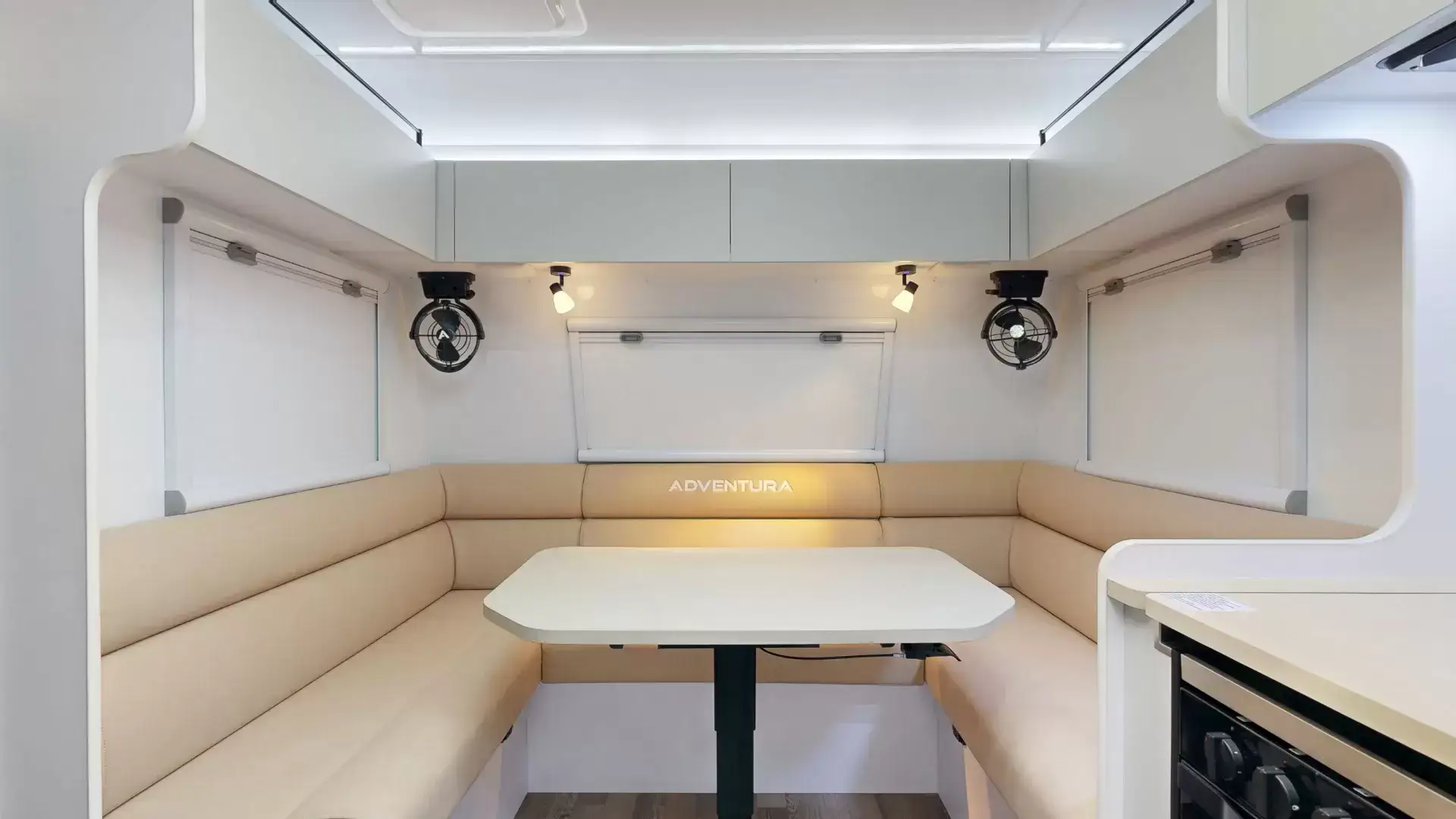

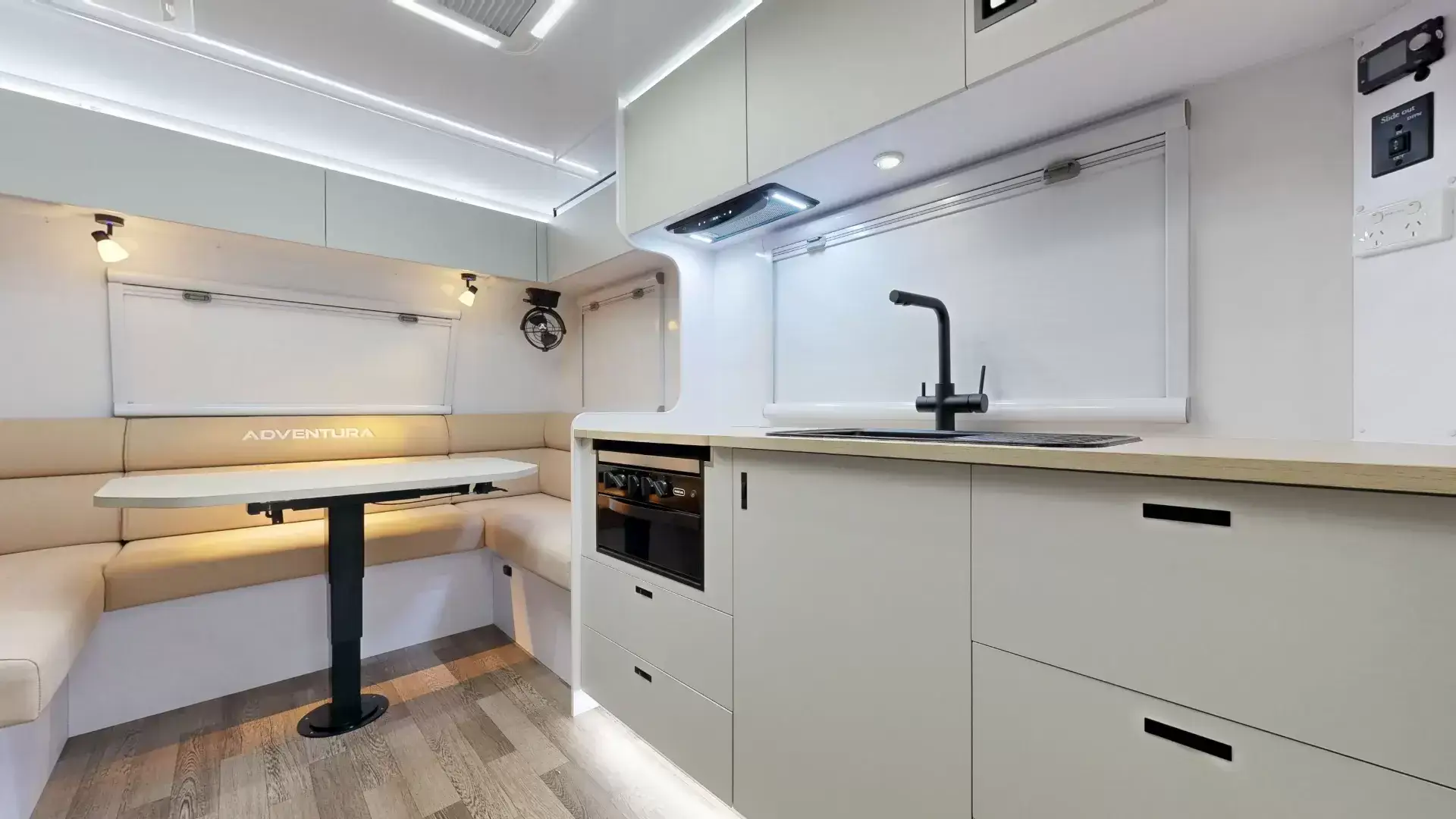

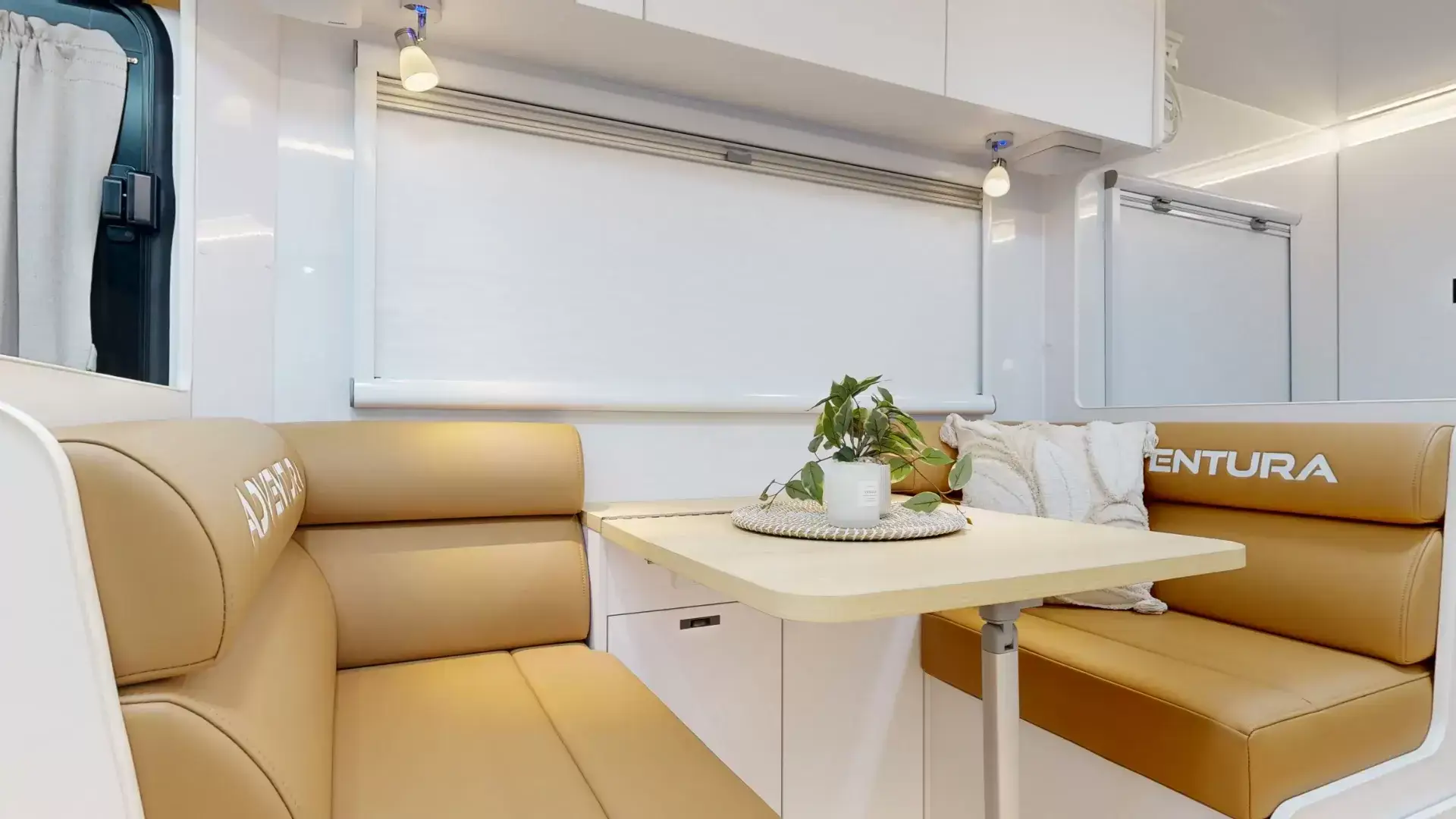

Table: Lift-up table with bed conversion (where applicable)
Benchtop: Modern style benchtop
Basin: Ceramic basin in Ensuite

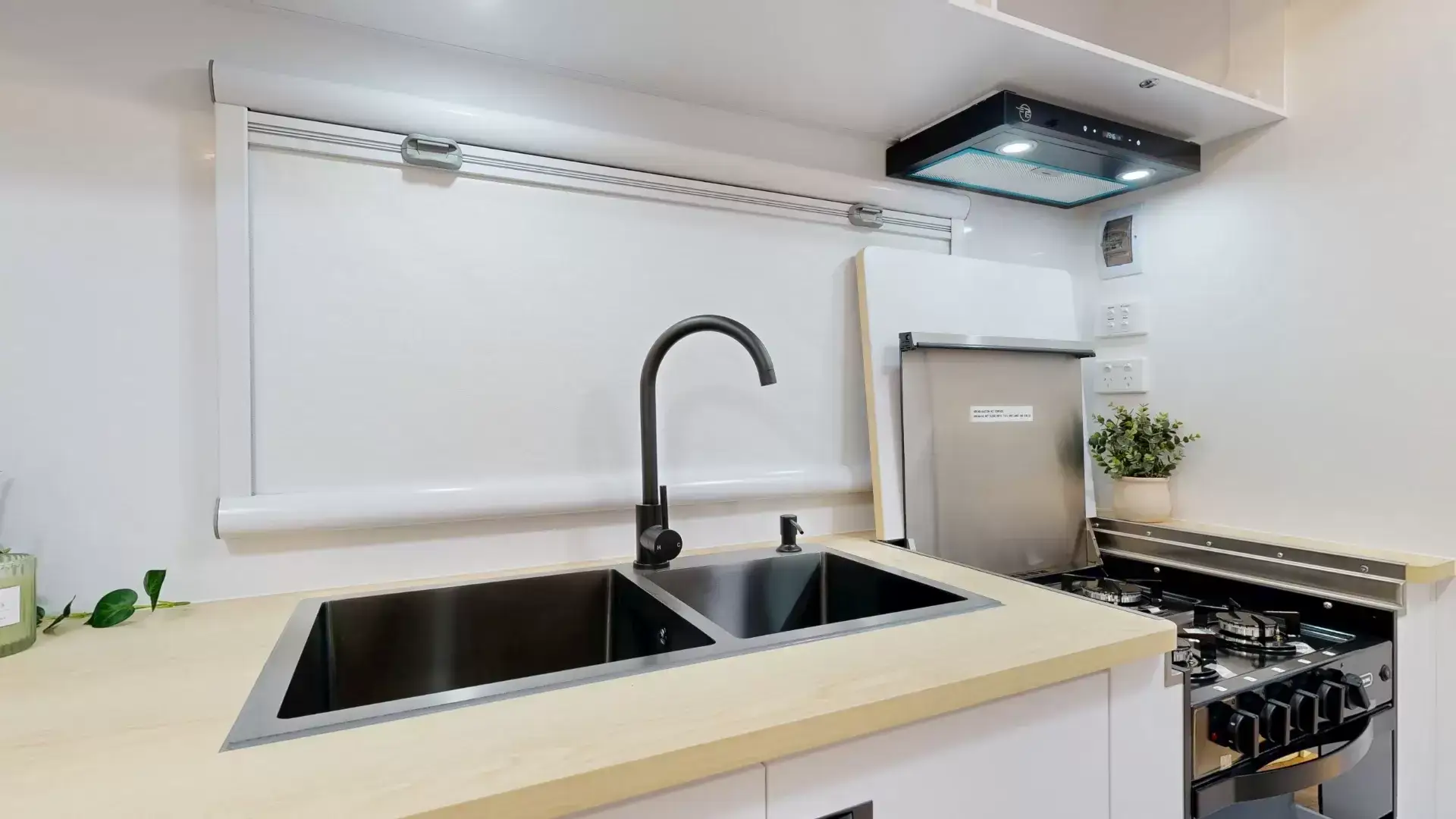

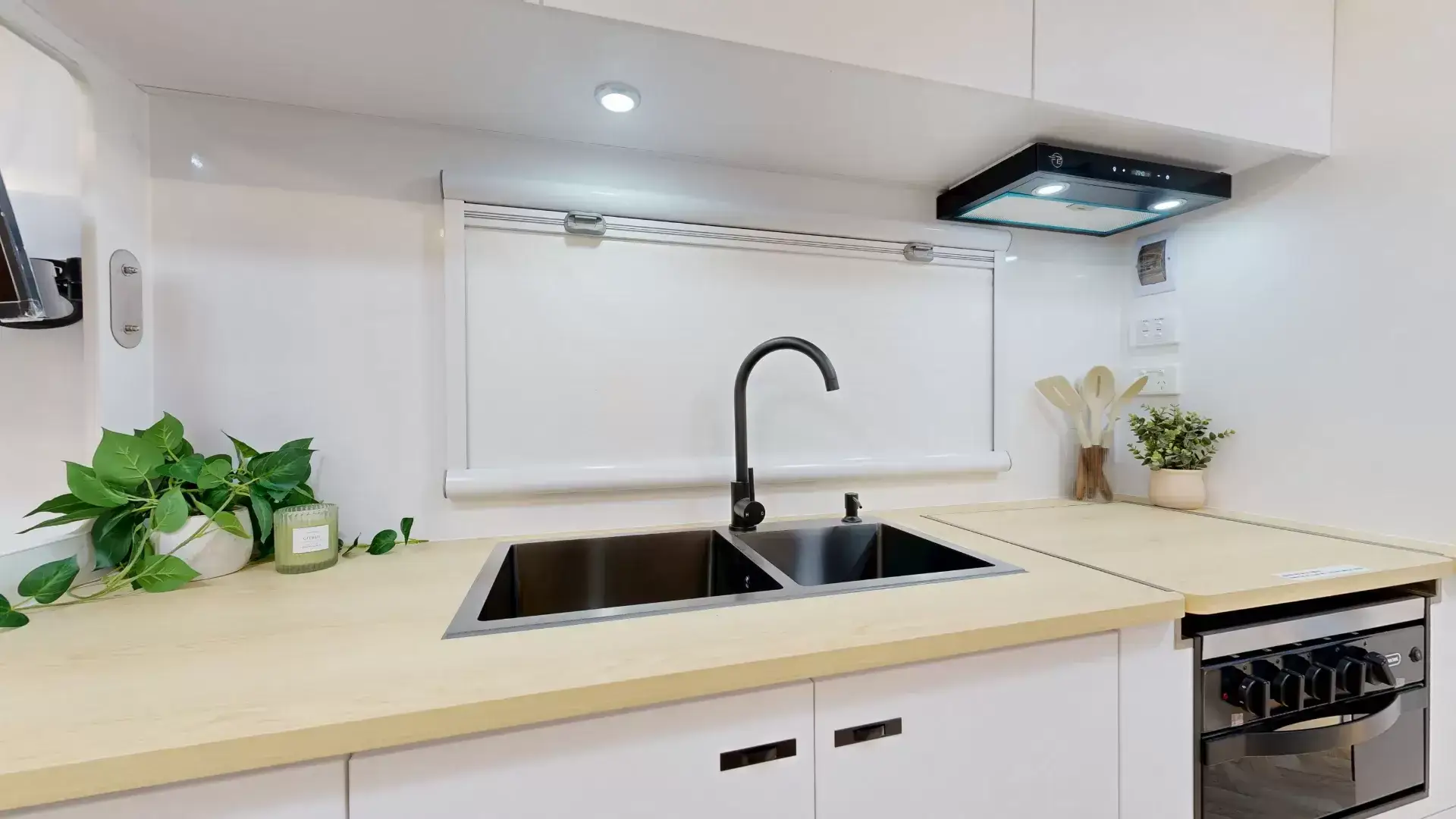

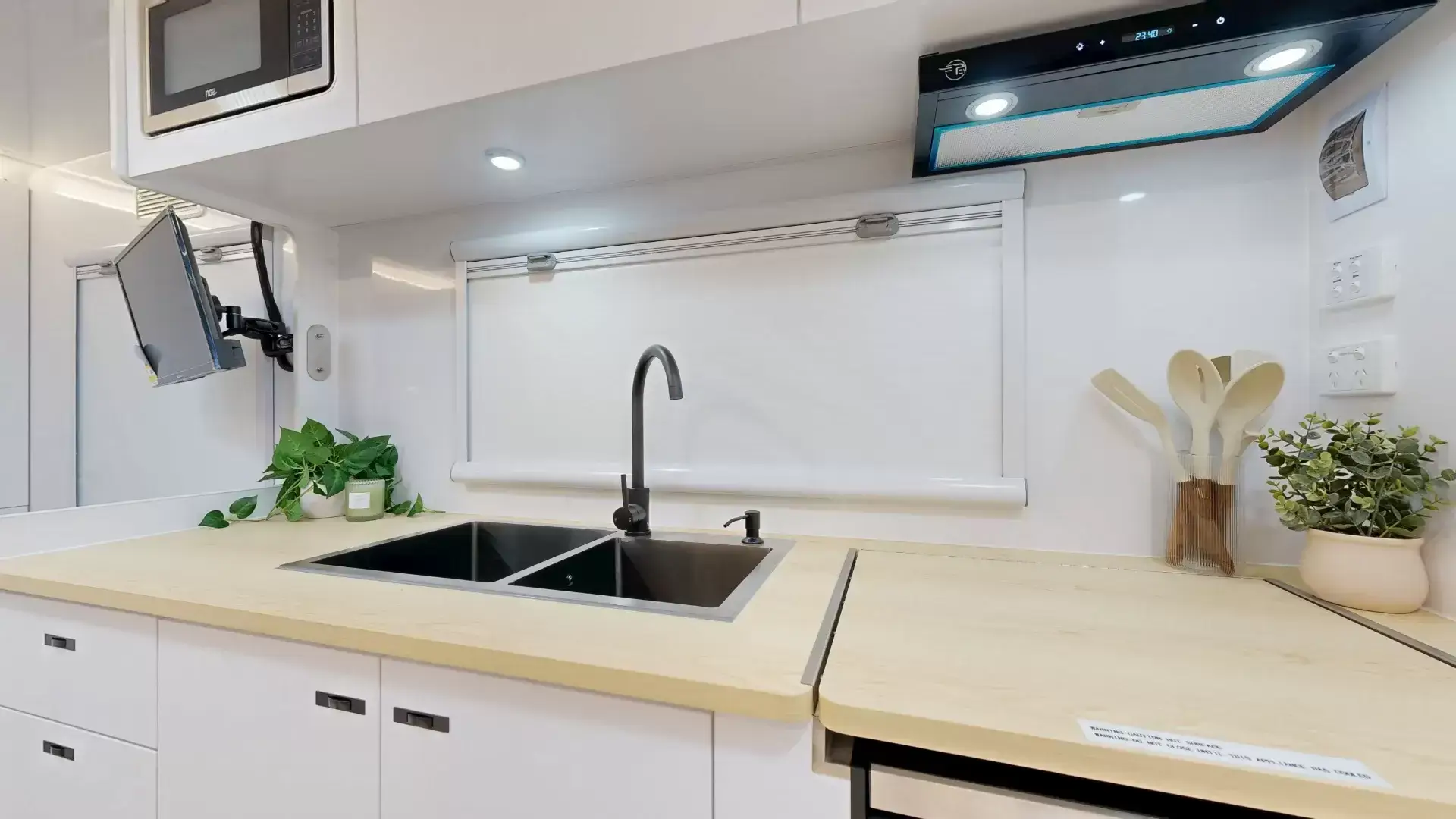

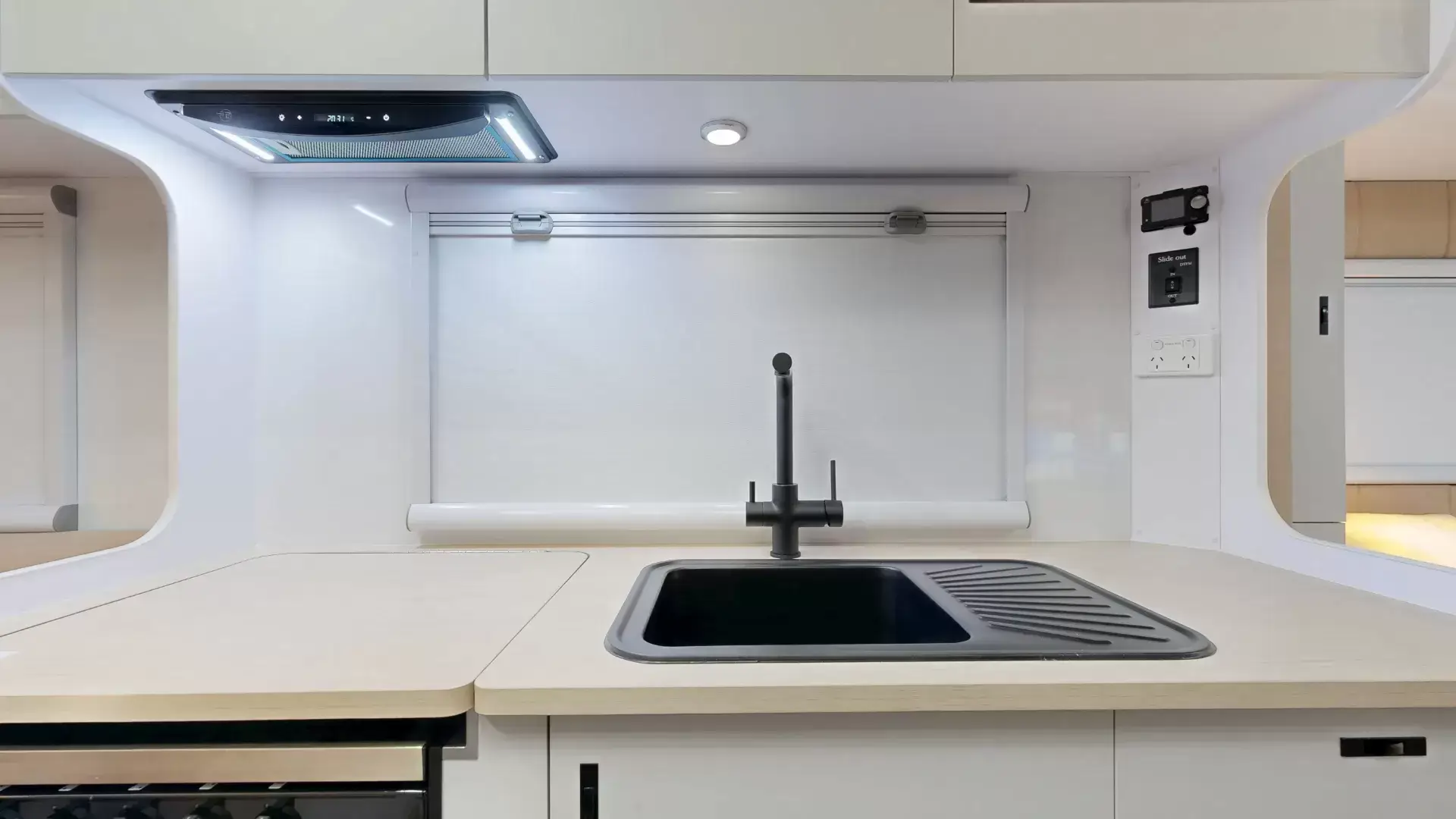

Sink: Extra large double sink
Mould: Full large fibreglass moulding
Walls: Lightweight full composite walls (timber-free frameless sandwich panels)
Toolbox: Extra large front toolbox with pull-out BBQ/fridge drawer slide (includes 50amp Anderson plug) & fully enclosed gas bottles with mounting rack on top
Storage Box: Rear storage box bumper with pole carrier & 2 x wood boxes
Awning: Aussie Traveller roll-out awning
Flap Kit: Anti-flap kit & curved roof rafters
